Setting up mobile sound system stored in The Gathering Place

Series of images describe how to make the connections for the wireless microphone and CD player.

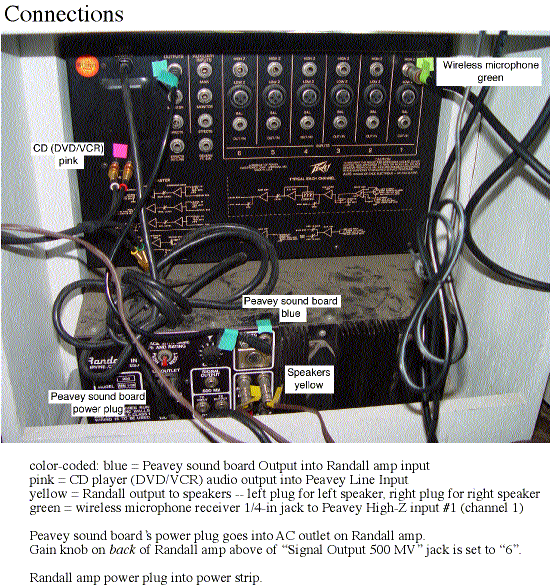

  1. Making the connections (1)

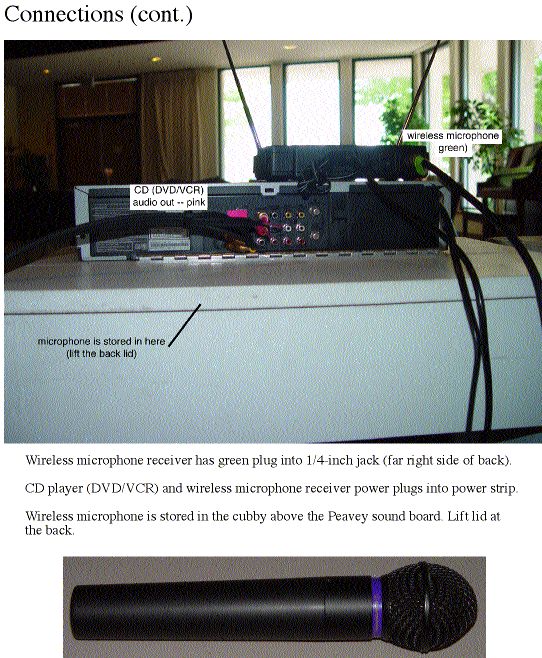

  2. Connections (2 -- cont.)

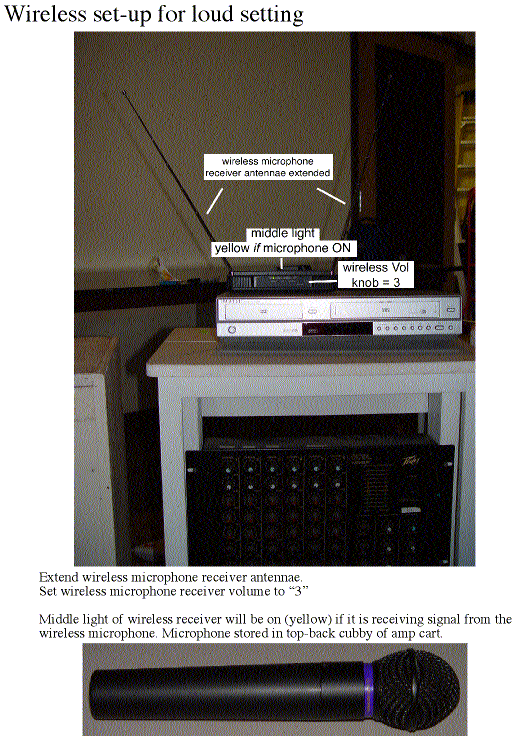

Image for setting up wireless receiver

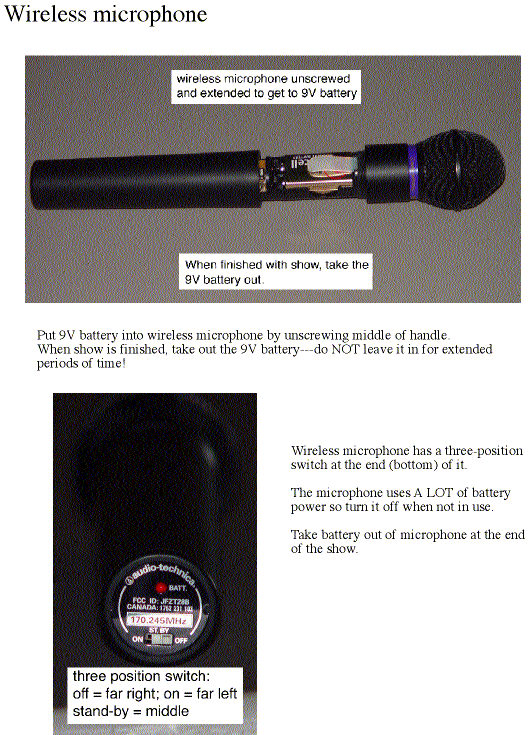

Image for using the wireless microphone

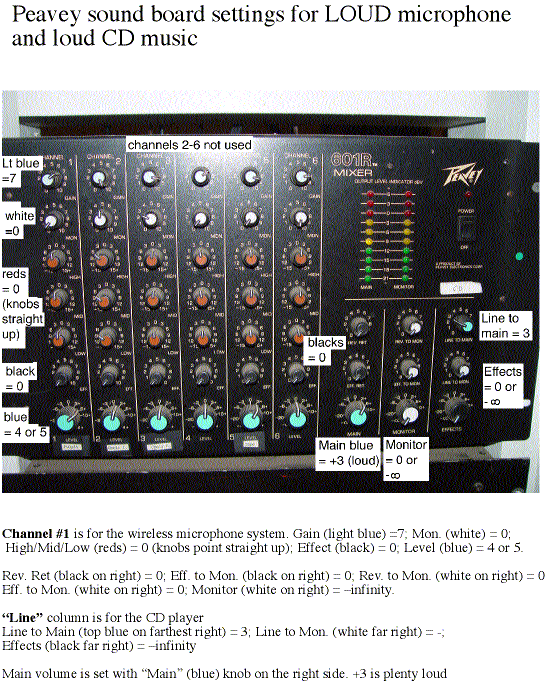

Image for Peavey sound board settings of the knobs. The CD player is hooked into the "Line" input and the wireless microphone is hooked into the "Input 1" equals "Channel 1" input

Series of images for powering up the system once all of the connections have been made

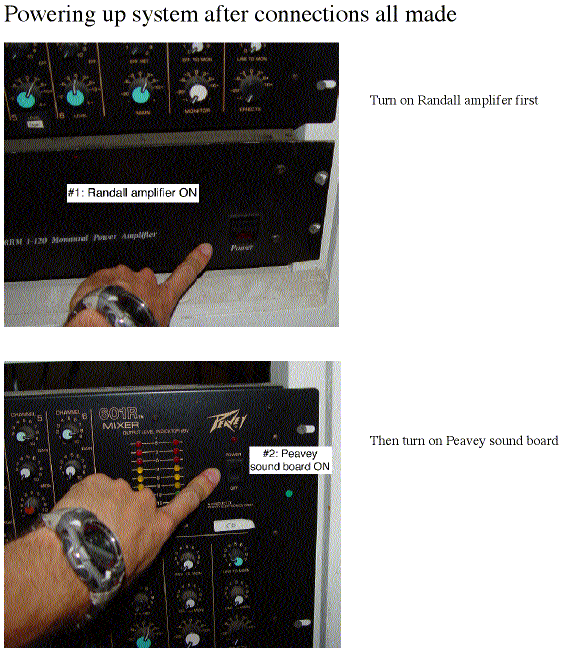

  1. Powering up system (1)

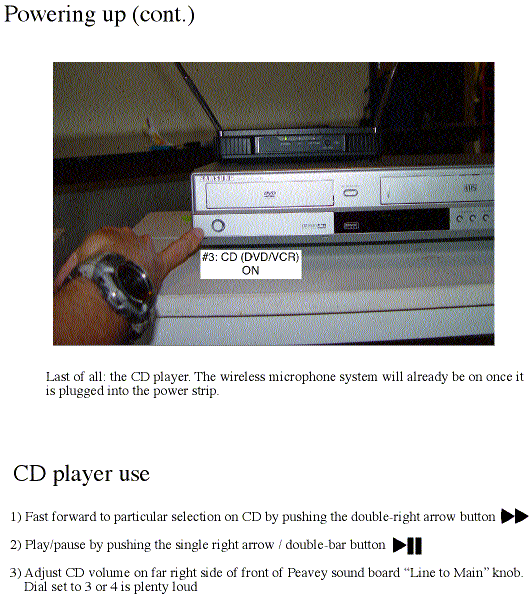

  2. Power (2 -- cont.) and CD player use
Wesley United Methodist Church -- Bakersfield, CA
